Best fit · best water rower

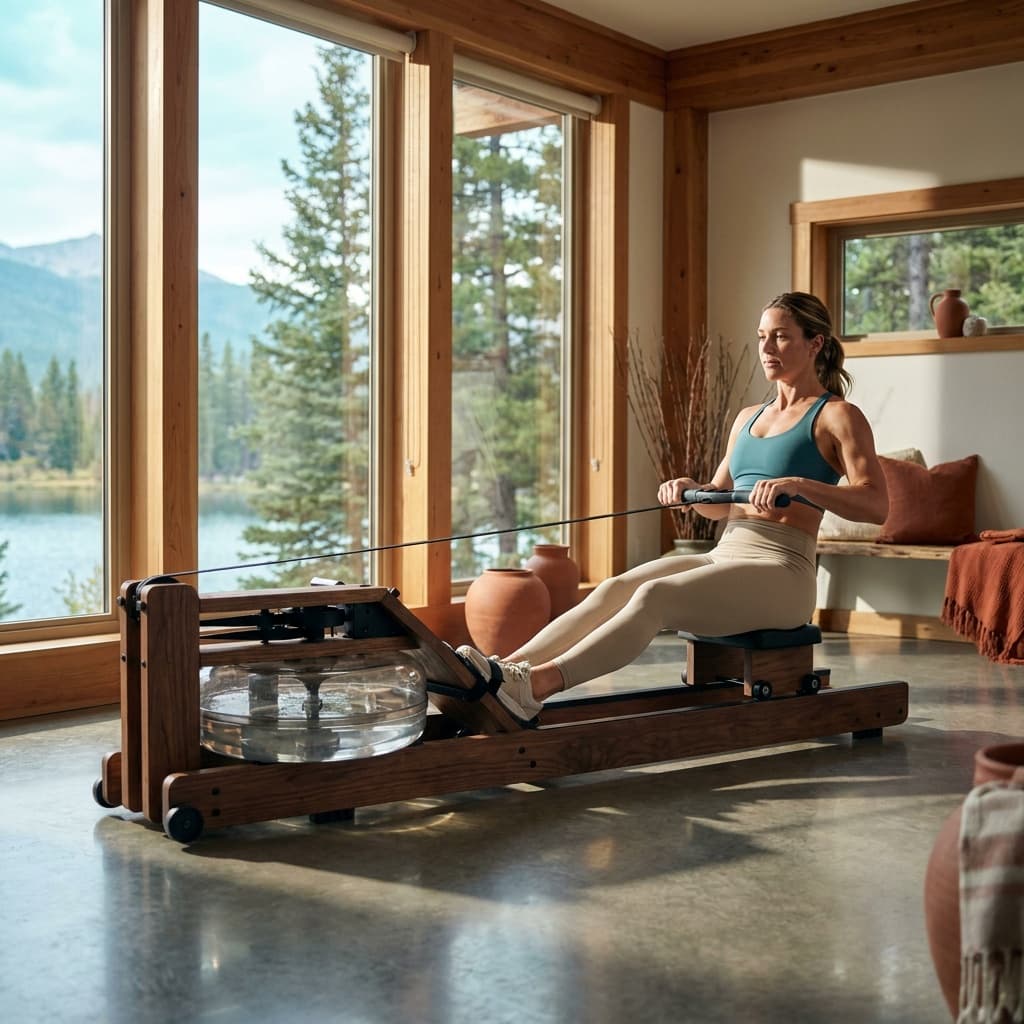

WaterRower Walnut Rowing Machine with S4 BLE Monitor
- Fits: Floor. Fits with the recommended clear area of 118 in by 70 in.
Fitness tool
Will a rower, bike, or walking pad fit your room?
Enter your floor, ceiling, and height. See which machines from our research fit with the room the makers say you need, and what rules the others out.
The footprint on the box is only the machine. You also need room to get on, to move, and to stay clear of walls, and the makers publish how much. This checker adds that clearance to every machine in our best rowing machines, best exercise bikes, and best walking pads guides and checks it against your space.
Your fit
6 of 8 rowing machines fit with room to use them
- Your floor
- 120 in by 84 in
- length by width
- Clearance rule
- +36 in by +48 in
- Concept2's free area: 18 in past each end and 24 in each side
- Ceiling
- 96 in
- only matters for storage
Best fits for your space
Also fits · best for tall rowers

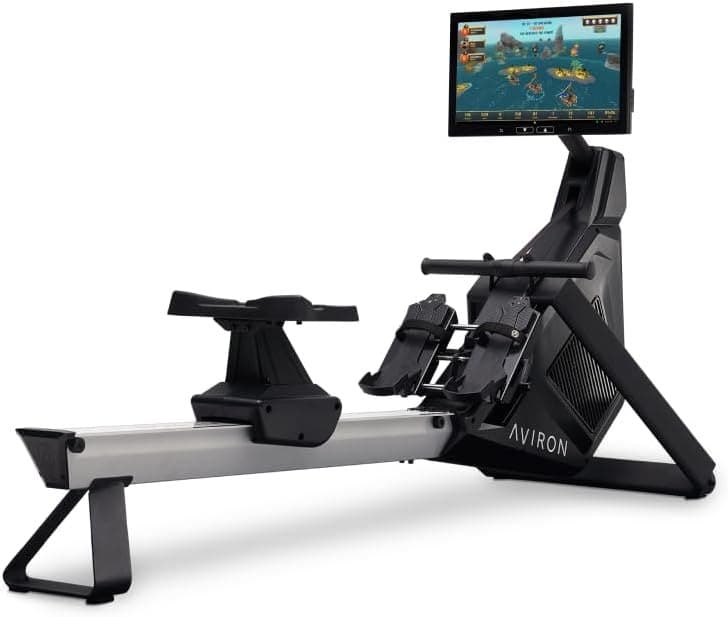

Aviron Strong Series Rower
- Fits: Floor. Fits with the recommended clear area of 120 in by 75 in.
- Fits: Your height. Inside the up to about 6 ft 8 in range.
Also fits · best budget

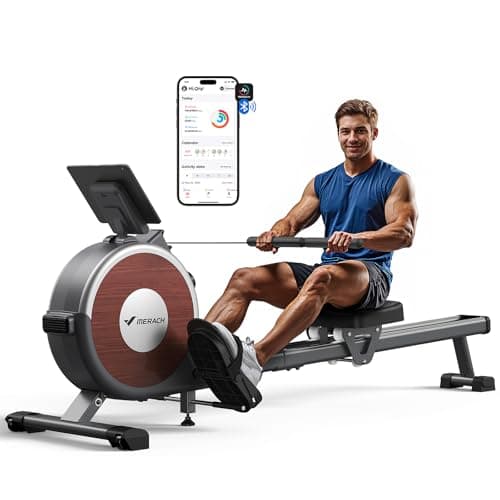

MERACH Q1S Magnetic Rowing Machine
- Fits: Floor. Fits with the recommended clear area of 101 in by 67 in.
- Fits: Your height. Inside the up to 6 ft 5 in (Amazon listing) range.
Also fits
- Hydrow Wave: Fits with the recommended clear area of 116 in by 67 in.
- MERACH 950: Fits with the recommended clear area of 114 in by 69 in.
- NordicTrack RW900: Fits with the recommended clear area of 116 in by 70 in.
Squeezes in, with a catch
- Concept2 RowErg: Fits the 108 in by 48 in minimum, but not the 132 in by 72 in recommended clear area.
- Echelon Row-s: Fits the 97 in by 48 in minimum, but not the 121 in by 72 in recommended clear area.
Dimensions are the makers' published figures, not our own measurements. We may earn a commission from retailer links, at no extra cost to you.
Researched from makers' specs, not personally tested.
Space each machine needs
The machine's published footprint, then the clear floor area once the clearance rule below is added.
Rowing machines
| Machine | Footprint | With clearance | Storage |
|---|---|---|---|
| Concept2 RowErg | 96 x 24 in | 11 ft by 6 ft | Separates into two pieces; Concept2 says not to stand the assembled machine upright |
| MERACH Q1S | 65 x 19.3 in | 8 ft 5 in by 5 ft 7 in | Folds upright |
| WaterRower Walnut S4 | 82 x 22 in | 9 ft 10 in by 5 ft 10 in | Stands on end; stored size not published |
| Hydrow Wave | 80 x 19 in | 9 ft 8 in by 5 ft 7 in | No storage position in our catalog listing |
| Aviron Strong Series | 84 x 27 in | 10 ft by 6 ft 3 in | Stands upright without a wall mount |
| NordicTrack RW900 | 80.1 x 21.8 in | 9 ft 8 in by 5 ft 10 in | Does not fold but can stand vertically; stored size not published |
| Echelon Row-s | 85 x 24 in | 10 ft 1 in by 6 ft | Folds upright |
| MERACH 950 | 78.3 x 20.5 in | 9 ft 6 in by 5 ft 9 in | Folds to about 49.4 in long and stands upright |
Exercise bikes
| Machine | Footprint | With clearance | Storage |
|---|---|---|---|
| Schwinn IC4 | 54.6 x 30.7 in | 8 ft 7 in by 6 ft 7 in | Does not fold |
| Peloton Cross Training Bike+ | 54 x 22 in | 8 ft 6 in by 5 ft 10 in | Does not fold |
| Peloton Cross Training Bike | 54 x 23 in | 8 ft 6 in by 5 ft 11 in | Does not fold |
| Horizon 5.0R | 66 x 25.2 in | 9 ft 6 in by 6 ft 1 in | Does not fold |
| Schwinn 230 | 64 x 27.7 in | 9 ft 4 in by 6 ft 4 in | Does not fold |
| Schwinn 130 | 41.3 x 21.4 in | 7 ft 5 in by 5 ft 9 in | Does not fold |
| MERACH S36 | 43 x 19 in | 7 ft 7 in by 5 ft 7 in | Does not fold |
| Marcy NS-1201U | 33 x 20 in | 6 ft 9 in by 5 ft 8 in | Does not fold |
Walking pads
| Machine | Footprint | With clearance | Storage |
|---|---|---|---|
| UREVO Strol 2E Pro | 44.9 x 21.9 in | 10 ft 4 in by 5 ft 2 in | Slides flat under furniture (4.2 in tall) |
| WalkingPad C2 | 56.9 x 20.4 in | 11 ft 4 in by 5 ft | Folds in half and stores flat |
| UREVO Smart Walking Pad | 42.1 x 19.3 in | 10 ft 1 in by 4 ft 11 in | Slides flat under furniture (4.1 in tall) |
| MERACH W50 | 50.2 x 22.2 in | 10 ft 9 in by 5 ft 2 in | Can stand on end against a wall |
| Goplus 2-in-1 | 52 x 27 in | 10 ft 11 in by 5 ft 7 in | Slides flat under furniture (5 in tall) |
| UREVO CyberPad | 42.9 x 22.8 in | 10 ft 2 in by 5 ft 3 in | Can stand on end against a wall |
| WalkingPad P1 | 56.5 x 21.5 in | 11 ft 3 in by 5 ft 2 in | Folds in half and stores flat |
| WalkingPad Z1 | 56.1 x 22 in | 11 ft 3 in by 5 ft 2 in | Folds in half and stores flat |
| LifeSpan TX6-GlowUp | 60 x 28 in | 11 ft 7 in by 5 ft 8 in | Slides flat under furniture (5.8 in tall) |
| Egofit Walker Pro M1 | 38.39 x 21.85 in | 9 ft 9 in by 5 ft 2 in | Slides flat under furniture (6.89 in tall) |
Walking pad footprints are the walking-mode sizes from our walking pad specs dataset. For more on stored sizes and conflicting maker figures, see the indoor fitness space dataset.
How this works
Footprints. Every machine size is the maker's published in-use footprint as listed in our guides. The checker tries each machine both ways round in your space, so a rower can run along either wall.
Rowing machines. Concept2's manual gives its 8 by 2 ft RowErg a 9 by 4 ft training area and an 11 by 6 ft free area. The free area is the target and the training area is the floor. Other rower makers in our guide do not publish an equivalent, so we apply Concept2's margins to their footprints; that is our assumption, not their guidance.
Exercise bikes. Peloton recommends at least 24 inches on all sides of its bikes and an 8 ft ceiling. Schwinn's IC4 manual asks for 24 inches along the access side and the rear. We use Peloton's figure as the target and Schwinn's as the minimum for every bike, and the ceiling rule for bikes you ride upright, not recumbents. Applying them beyond those brands is our assumption.
Walking pads. No walking pad maker in our guide publishes a US clearance rectangle, so we use Peloton's treadmill guidance: 78.7 inches behind and 20 inches on each side, and a ceiling from 7 ft (for walkers up to 5 ft 2 in) to 9 ft (for everyone). Pads sit lower than the Tread, so the ceiling rule is on the cautious side. Under a desk, the room behind you is what matters.
Your height and storage. Where a maker publishes a rider height range, the checker rules out machines you fall outside. If you put the machine away between workouts, bikes drop out (none of ours fold), and machines that stand upright are checked against your ceiling where the stored height is published. A stored size the maker does not publish is flagged rather than guessed.
Where these numbers come from
| Claim | Source | Checked |
|---|---|---|
| Concept2 RowErg: 2 x 8 ft machine, 4 x 9 ft training area, 6 x 11 ft free area | Concept2 RowErg manual (training area and free area) | 2026-10-03 |
| Peloton bikes: at least 24 in on all sides; 8 ft minimum ceiling | Peloton, Bike+ FAQ (24 in on all sides, 8 ft ceiling) | 2026-10-03 |
| Peloton Tread: 78.7 in behind, 20 in each side; ceiling by user height | Peloton support, Preparing your home for your Peloton equipment (Tread clearance and ceiling by height) | 2026-10-03 |
| Schwinn IC4: keep 24 in clear on the access side and the rear | Schwinn IC4 / IC8 owner's manual (24 in access side and rear) | 2026-10-03 |
| Machine footprints, heights, rider ranges, and stored sizes | The makers' specs, as cited in each guide linked above | 2026-10-03 |
This is general guidance. Follow your machine's own manual where it is stricter, and keep children and pets out of the clear area while you train.
Frequently asked questions
How much space do you need for a rowing machine?
More than the machine itself. Concept2 says its 8 by 2 ft RowErg needs a 9 by 4 ft training area and an 11 by 6 ft free area around it. Applying the same margins to the other rowers we cover, the most compact, the MERACH Q1S, still wants about 8 ft 5 in by 5 ft 7 in.
How much room does an exercise bike need?
Peloton recommends at least 24 inches clear on all sides of its bikes, and Schwinn's IC4 manual asks for 24 inches along the side you get on from and behind the bike. With 24 inches all round, the smallest bike we cover, the Marcy NS-1201U, needs about 6 ft 9 in by 5 ft 8 in. Recumbent bikes are the longest.
What ceiling height do you need for a spin bike?
Peloton recommends a 8 ft ceiling for its bikes so riders have headroom, which matters most when you stand to climb. Recumbent bikes, where you stay seated, only need to fit under the ceiling.
How much space do you need behind a walking pad?
A walking pad is a small treadmill, so plan for treadmill clearance: Peloton asks for 78.7 inches (about 6 ft 7 in) clear behind its Tread and 20 inches on each side. That means even the most compact pad we cover, the UREVO Smart Walking Pad, wants about 10 ft 1 in by 4 ft 11 in of clear floor. Under a desk, the space behind you is the part to keep free.
Which rowing machines fold or stand up for storage?
Of the rowers we cover, Concept2 RowErg, MERACH Q1S, WaterRower Walnut S4, Aviron Strong Series, NordicTrack RW900, Echelon Row-s, MERACH 950 fold, stand on end, or come apart; the Concept2 separates into two pieces rather than standing assembled. Stored sizes are only published for some of them, and the checker flags the ones that are not.
